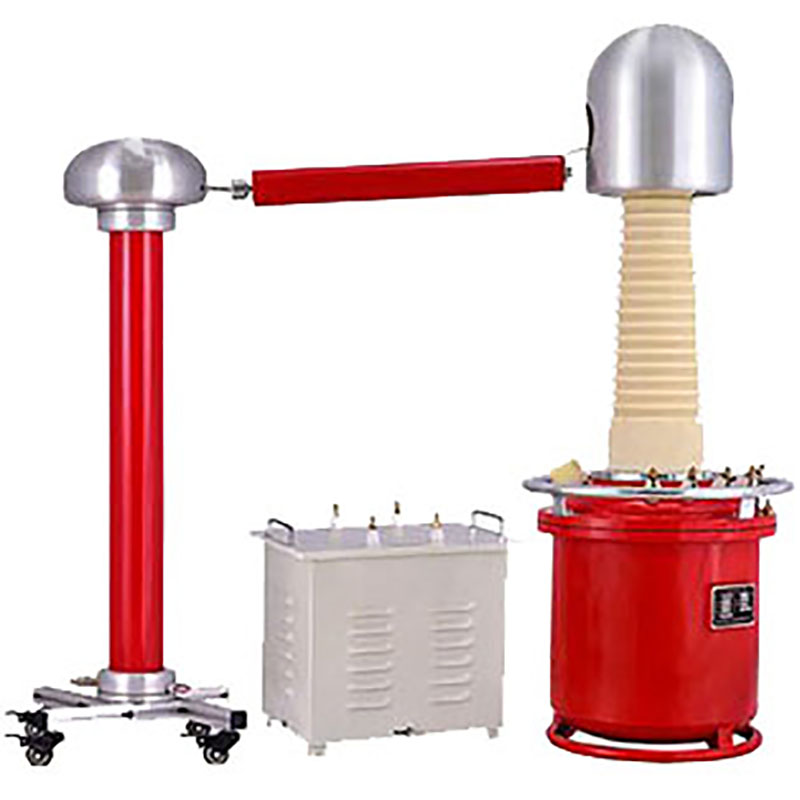

  • PD Test System YDQW-10kVA/100KV
PD Test System YDQW-10kVA/100KV

PD Test System YDQW-10kVA/100KV

-Application:

This equipment is mainly used for part of the 35kV voltage level for power products such as transformers, power transformers (5000KVA/10KV), high voltage circuit breakers, cables accessories, products for power frequency voltage withstand test and partial discharge test and research pilot.



-Working Conditions:

Altitude: ≤ 2500m

Temperature: -15℃ ~ +45℃

Relative humidity: ≤90%RH



-Standard

JB/T9641-1999  …………………Test Transformer

GB/T.311.1-1997  ……………Insulated high-voltage transmission and distribution equipment and cooperation

GB/T 16927.1-1997  ……………HV Test TechnologyCharter 1

GB/T 16927.2-1997………………HV Test TechnologyCharter 2

GB7328-87………………………Transformer and reactor sound levels measured

GB/7354-2003 …………………PD Test

GB/T509-1991 …………………Power Transformer Test Rule

GB2536-1990……………………Transformer Oil

GB7252-87………………Transformer oil dissolved gas analysis and assessment guidelines

JB8749-1998……………………General requirements for voltage regulator

EN60060-1, EN60060-2, EN61326-1, EN62061-1,  EN61010-1, EN61010-2-010





-Equipment components



Sr no

Name of Commodity

 Model number

 Qtyunit

 1

PD Test Transformer

YDQW-10KVA/100KV

     1

 2

PD Test Control unit

10kVA/200V

     1

 3

Power Isolation Filter

10kVA/200V

1

 4

PD Coupling Capacitor

100kV/400pF

1

 5

Current Limit Resistance

100kV/2KΩ

1

 6

PD Analyzer

HSJFD—3A

  1

 7

Calibrator

JZF-9

  1

 8

Input unit

Type 3,4,5

  3





PD Test Transformer

1. Rated capacity: 10kVA

2. Output voltage:0- 100 kV

3. Input voltage: 200V ±10%

4. PD Volume under rated voltage ≤ 5PC

5..Output Current: 100mA

6. Phase: Single Phase

  7. Voltage accuracy: AC 1.5%

7. Power supply distortion: <3%

9. Dielectric medium: SF6

10.Size: Ф360*1100mm

11. Weight: 85kgs



Control unit (Frequency generator)



Functon:

1.Zero position function,digital voltage/current display.

2.Time Ralay control alarming warning; alarm with light

3.Over-current/voltage protection, breakdown protection.

4.Continuous adjusting voltage, without waveform distortion.

5. Voltage return to zero when testing is over.



Parameters:

1.Rated capacitance: 10kva

2.Input voltage:220V±10%

3.Output current: 50A

4.Output voltage: 0-200V

  5.Size: 480*350*700mm

  6.Weight:65kgs



Power Isolation Filter (10KVA)

1.Input Voltage200V±10%

2.Output voltage200V±10%

3. Rated Capacitance10KVA

4. Resistance voltage: ≤5%

5.Unload loss: ≤5%

5. Reduction Character10KHz100KHz ≥20dB; 100KHz30MKHz ≥60dB

6. PD levelQ≤ 5PC under rated voltage

7. Size400 × 350 × 450mm

8. Weight60Kg



PD Coupling Capacitor

1.Capacitance: 200pF

2.PD Volume:≤ 5PC

3.Coupling Capacity: 100KV

4.Equipotential shielding: 1 unit

4.Size: Height 1100mm, Ф80mm

5.Weight: 15kgs



Current Limit Resistance

1.Creepage:>150KV

2.Height: 300mm, Ф60mm

3.Weight: 2.8kgs



PD Analyzer

Feature:

1. large scale integrated circuit make the tester more stable and accurate..

2. large-screen CRT, the screen area to work effectively 100 × 80mm, can be clearly observed discharge waveform.

3. with A, B, C three-channel test interface, more convenient testing.

4. using double-header shows the amount of discharge, both figures table shows PC value, while another pointer header shows PC value, the pointer table can be divided into linear and logarithmic instructions.

5. Low noise, high detection sensitivity, wide capacitance coverage area

6. Small size and light weight make it easy to carry.



Main technical index:

1. Testing scope: 6PF - 250uF

2. Sensitivity: 0.02PC

3. Amplifier band:

   (1) low-end: 10KHZ, 20KHZ, 40KHZ optional

   (2) high-end: 80KHZ, 200KHZ, 300KHZ optional

4. Amplifier adjustment:

6 coarse grade, 20db each grade;

scope of fine-tune> 20db.

5. Time window:

   (1) Window Width: 15 - 150°Adjustable

   (2) Window Position: Each window can be rotated 0 -170°

   (3) 2 windows can be opened separately or simultaneously.

6. Discharge scale:

   (1) Analog Meter: logarithmic scale 1-10-100, error5%

      linear scale 0-1000 Error5% (based on full-scale meter)

   (2) Digital Header: 3.5 LED shows 0-100, error5%

7. Elliptical:

   (1) Frequency 50HZ, 100HZ, 150HZ, 200HZ, 400HZ

   (2) Elliptical rotation: 30°each grade, it can be used for 120°rotation

   (3) Display: Oval - straight line

   (4) high-frequency input voltage:13V-275V,  power:1VA

8. Testing Voltmeter:

   (1) Range: 100KV (expandable)

   (2) Display: 3.5 digital voltmeter instructions

   (3) Accuracy: 5%

9. Power supply: 220V

10.Size:530×550×220mm3

11.Weight:22KG
